100kg-300kg Goods Hoists

Imer Rio 100
Scaffold Hoist

The Imer RIO100 / 122H-462 scaffold hoist weighs only 18kg. It is light, compact, easy to install and transport. This means that it is suitable for a multitude of tasks. The quick hook (spring-catch) mounting system allows for a fast installation on any attachment, the optional extension brackets can also be used. The oil bath lubrication gives a longer life to the gears (nearly double) compared with those of a similar type in a grease bath, increasing reliability and safety of the unit. This hoist is an excellent unit combining cost effectiveness with performance.

Spec Sheet Imer RIO100

Geda Maxi 120S
Scaffold Hoist

With two lifting speeds, easy assembly and extensive safety features, the convenient rope hoists from the GEDA Mini/Maxi range are the ideal helpers for efficient, yet safe transport of scaffolding elements and construction materials.

The manual drive of the rope drum is not transported upwards, but simply fastened to the scaffolding at the bottom, while the lightweight swivel arm is attached at the top of the scaffold at the desired height. This even allows quick and easy relocation of the rope hoists during different construction phases.

A broad selection of accessories and load handling devices turns the compact rope hoists into true all-round talents at construction sites. Whether bulky scaffolding elements, loaded wheelbarrows, buckets or other construction materials – the GEDA rope hoists from the Mini/Maxi range have been known in the construction industry for decades and ensure easy and efficient material transport at the press of a button.

Spec Sheet Geda Maxi 120S

Imer TR225
Scaffold Hoist

This pivoting 200kg electric hoist with a lifting height of 30m and is ideal for the small builder or larger contractor to lift material from the ground or lower material to the ground safely. It has a top limit lever and micro switch to stop the hoist when it is at the top of its lift and a lower limit lever and switch that stops the hoist from winding back up the wrong way. It also has a Thermal Cut-out to protect the motor from power surges. The hook has a spring loaded safety catch to keep the load carrier within the hook.

This machines comes complete with the detachable TR225N pendant and also the 1.8 metre pole that attaches itself to the scaffolding.

Spec Sheet Imer TR225

Imer ET300
Gantry Hoist

This 300Kg has a 30m height of lift which is designed to be used within scaffolding or on a flat room where there is no scaffold to attach a lifting hoist to. It has a running beam 3.3m long and allows an overhang of 1m beyond the edge of the safety board to enable material to be maneuvered along the hoist runway safely and without effort .It is ideal for the small builder or larger contractor to lift material from the ground or lower material to the ground safely. It has a top limit lever and micro switch to stop the hoist when it is at the top of its lift safely. The hook has a spring loaded safety catch to keep the load carrier within the hook. The Hoist also has a Brake to control the travel along its runway and Rubber stops at each end of the travel.

Spec Sheet Imer ET300

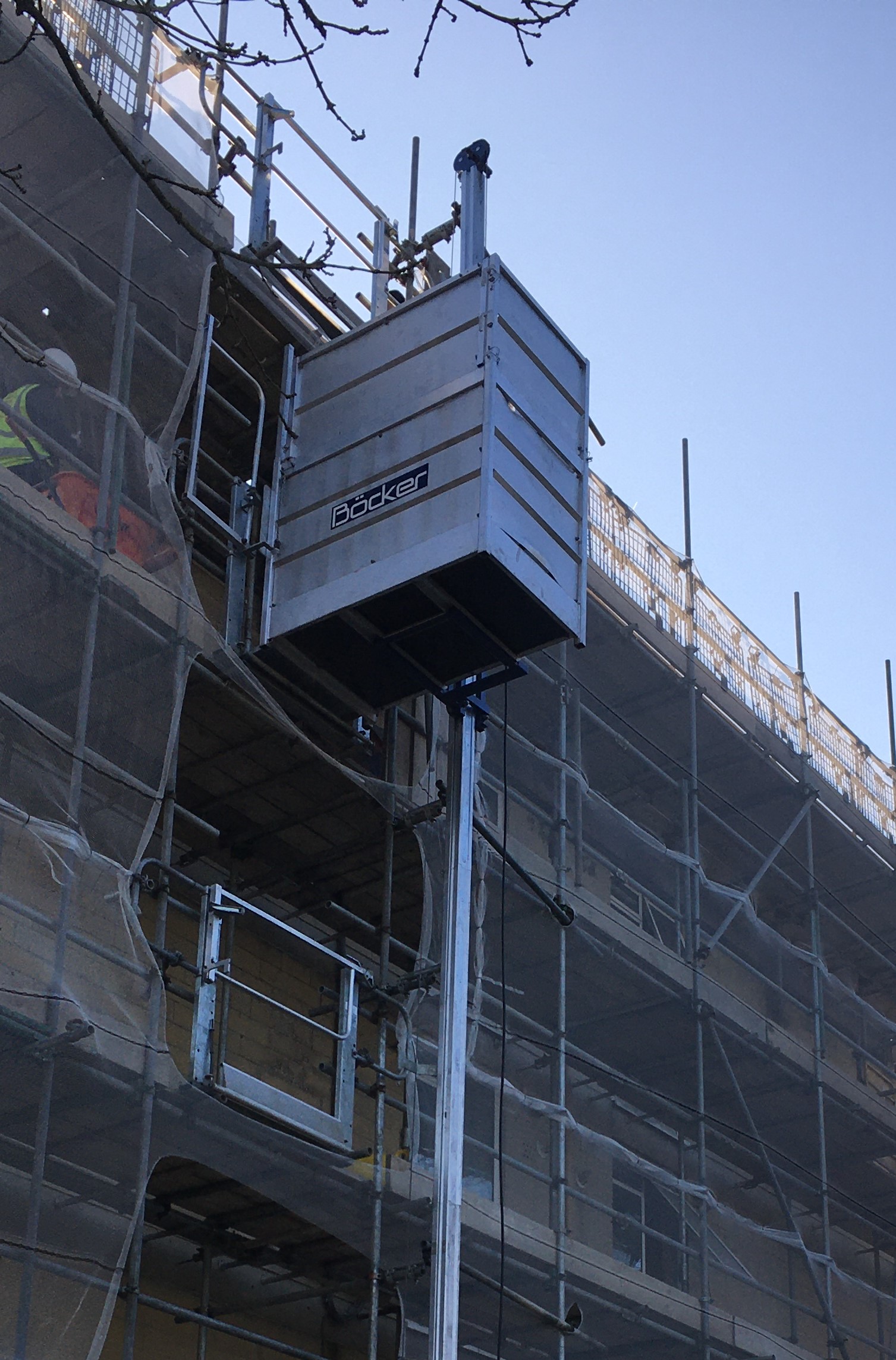

Bocker Superlift S225
Barrow Hoist

A Single Wheelbarrow platform Hoist capable of transporting a wide range of materials.

Particularly in favour with roofing contractors, the platform swivels through 90 degrees for ease of unloading.

Supplied with Electrically & Mechanically Interlocking Landing Gates, this is a very popular, proven & versatile single phase, electrically driven Hoist.

Spec Sheet Bocker S225

Maber MB250
Barrow Hoist

A single wheelbarrow platform Goods Hoist capable of transporting a wide range of materials.

Particularly in favour with roofing contractors, it has a Semi-Automatic Landing Control and a platform that swivels through 90 degrees for ease of unloading. This Hoist platform swings in the opposite direction to conventional Hoist of its type, offering a great option when site footprint is unusual.

Supplied with Electrically & Mechanically Interlocking Landing Gates, this is a popular, proven & versatile single phase, electrically driven Hoist.

Spec Sheet Maber 250

Geda 300Z
Barrow Hoist

A single wheelbarrow platform Hoist capable of transporting a wide range of materials, including scaffold tubes, boards and fittings when the renowned ‘Lock ‘n Load’ system is fitted.

Particularly in favour with roofing contractors, it has a Semi-Automatic Landing Control and a platform that swivels through 90 degrees for ease of unloading.

Supplied with Electrically & Mechanically Interlocking Landing Gates, this is a very popular, proven & versatile single phase, electrically driven Hoist.

Spec Sheet Geda 300Z

Maber 300
Barrow Hoist

This is a double wheelbarrow width Goods Hoist capable of transporting a wide range of materials.

Often referred to in the trade as a ‘Bricky Hoist’, this 300kg capacity Hoist is a popular option for Bricklayers and Stonemasons, as well as roofing contractors and general builders alike.

Supplied with Electrically & Mechanically interlocking Landing Gates, this is a very popular, proven Hoist which can also be configured within lift-shafts by utilising a bespoke landing control system.

Spec Sheet Maber 300 LHM
Spec Sheet Maber 300 RHM

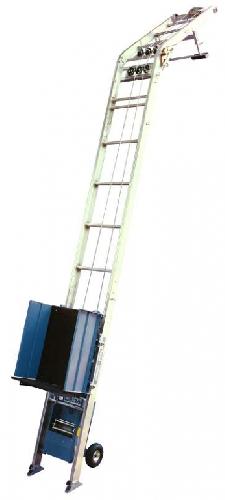

Geda Combilift
Inclined Hoist

The hoist can be used inclined with a load capacity up to 250 kg. This hoist can be used in confined spaces on construction sites. A patented bolt free connecting system, ensures easy assembly and disassembly of the ladder sections. The compact base unit, an innovative rack and pinion drive and a range of load carrying devices are the most important advantages to consider when selecting this machine.
